LSP-M22

SPECIFICATION

Contacts Number

Voltage Rating

Current Rating

Contact Resistance

Dielectric resistance

Withstand voltage

Wire Gauge

Cable OD

Mechanical Life

Operation Temperature

Storage Temperature

Waterproof Level

Property - Materials

Cable Type

Wire Connection type

Seal-O-Ring

Body

ASSEMBLY / OVERMOLD

2/3/4/5/6/7/8/9/10/12/15/18/24/3+8P/3+9P

250V -- 100V

25A -- 5A

≤ 10Ω

1000 MΩ at DC500V

3KV Under normal temperature

<=1.5mm² / 14AWG

3.5mm² ~ 10.5mm²

3000 mating cycles

-40°C ~ +105°C

-25°C ~ +85°C

IP 65 / IP 67

RoHS Environmental protection materials

PVC / PU / Rubber / Silicone

Soldering / Copper with Golden Plated

Silicone

V-0 Flame-resistant / anti-UV nylon (PA66A)

M22A Mechanical Drawing.png
LSP-M22A
LSP-M22A

Thread lock type, field assembly connector.

press to zoom

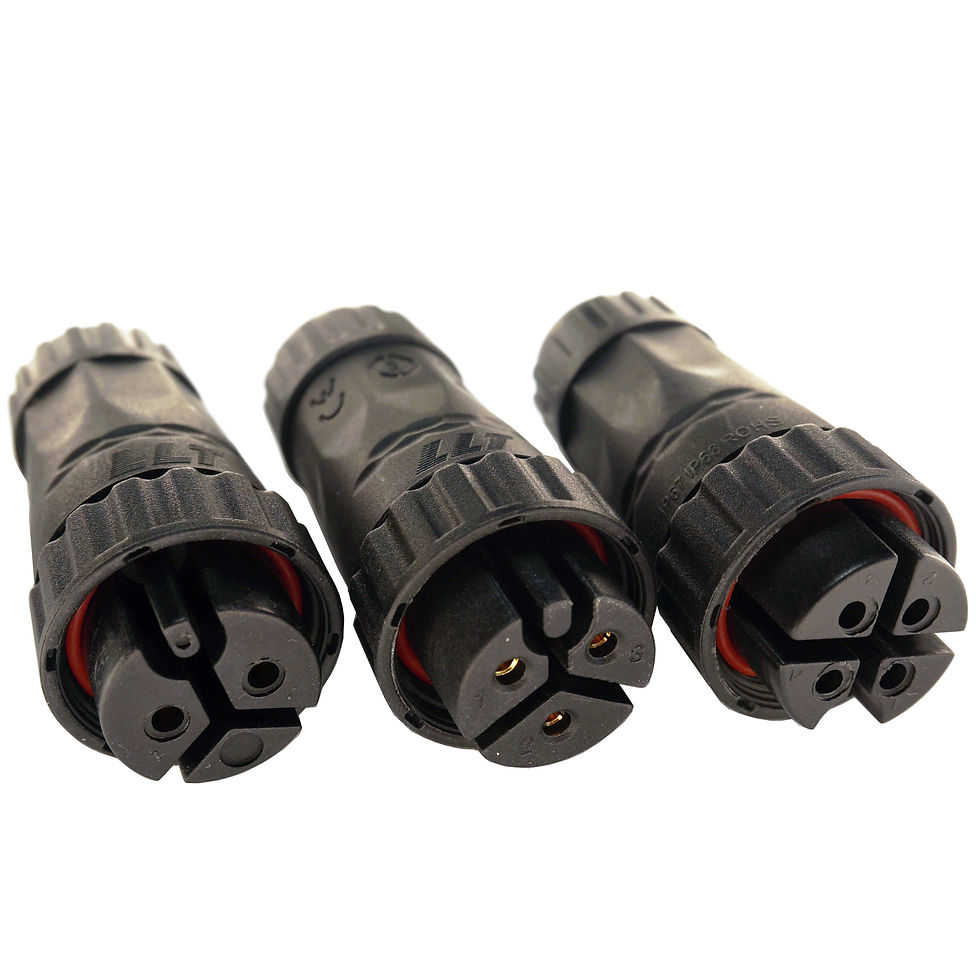

LSP-M22A01-M-03 and M22A02-F-03
LSP-M22A01-M-03 and M22A02-F-03

Thread lock type, field assembly connector.

press to zoom
LSP-M22A01-M-02(03,04...)
LSP-M22A01-M-02(03,04...)

Thread lock type, field assembly connector. Available on Female or Male pins.

press to zoom
LSP-M22A02-F-02(03,04...)
LSP-M22A02-F-02(03,04...)

Thread lock type, field assembly connector. Available on Female or Male pins.

press to zoom
LSP-M22M - Molding type connectors
LSP-M22M - Molding type connectors

Thread lock, Molding type connector.

press to zoom
LSP-M22M02-F-03 & M22M01-M-03
LSP-M22M02-F-03 & M22M01-M-03

Thread lock, overmold type connector.

press to zoom
LSP-M22PA02-F-03 with LSp-M22P05
LSP-M22PA02-F-03 with LSp-M22P05

LSP-M22PA02 with LSP-M22P05 Rear panel mount, push-self lock.

press to zoom
LSP-M22PA02  with LSP-M22P05
LSP-M22PA02 with LSP-M22P05

LSP-M22PA02 with LSP-M22P05 Rear panel mount, push-self lock.

press to zoom
LSP-M22PA02 with LSP-M22P05
LSP-M22PA02 with LSP-M22P05

LSP-M22PA02 with LSP-M22P05 Rear panel mount, push-self lock.

press to zoom
