LSP Harness -T/Y/F Distributor, cable adapters, NEMA Plugs

SPECIFICATION

Distributor Number

Voltage Rating

Current Rating

Contact Resistance

Dielectric resistance

Withstand voltage

Wire Gauge

Cable OD

Mechanical Life

Operation Temperature

Storage Temperature

Waterproof Level

Property - Materials

Cable Type

Wire Connection type

Seal-O-Ring

Body

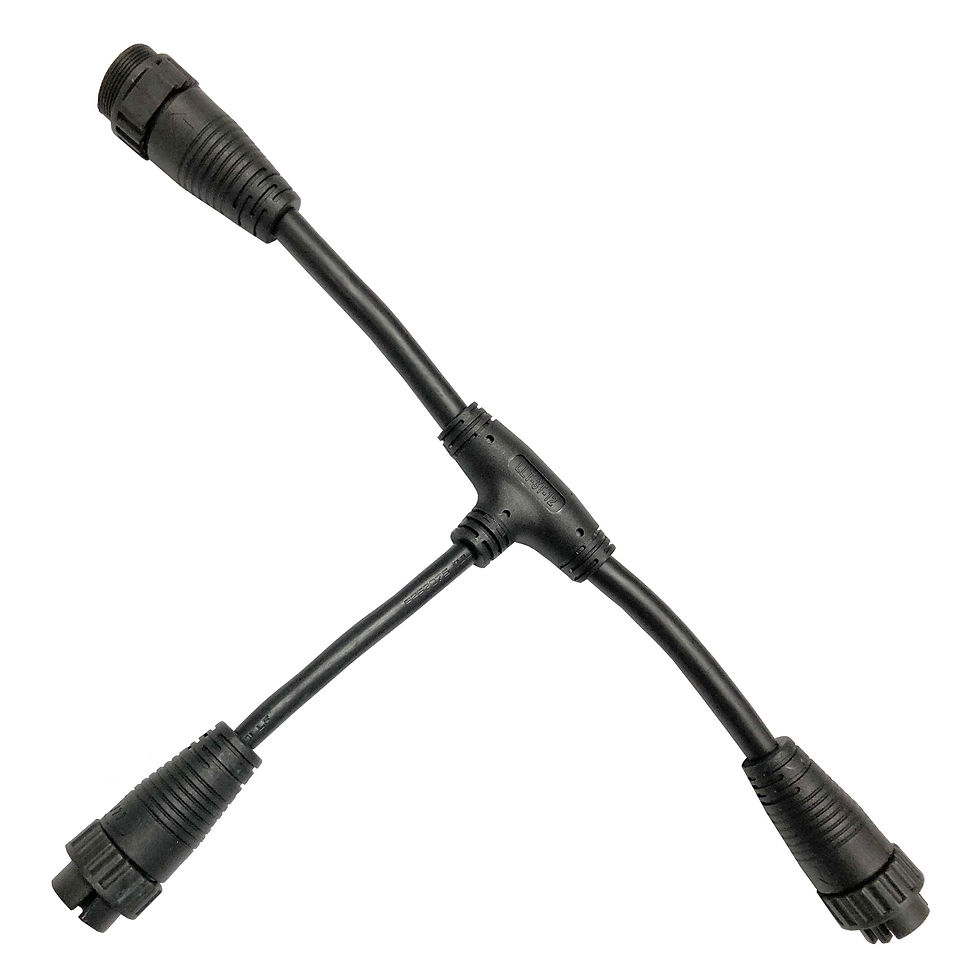

LSP-M22-3T14+M16-3T12x18T
LSP-M22-3T14+M16-3T12x18T

Customized 3T14 -T harness

press to zoom
3T12
3T12

Molding type T connector. 2 sizes available and the cable OD up to 12AWG.

press to zoom
center strip cabl adater
center strip cabl adater
press to zoom
LSP-M15M-1C2
LSP-M15M-1C2

M15M molding type distributor. Available 2 to 6 ports.

press to zoom
LSP-M16M-1C6
LSP-M16M-1C6

M16M thread lock, molding type distributor. Available 2 to 6 ports.

press to zoom
LSP-M16-1C3
LSP-M16-1C3

M16M Self-push lock, molding type distributor. Available 2 to 6 ports.

press to zoom
LSP-M18M-1C3
LSP-M18M-1C3

M18M molding type distributor. Available 2 to 6 ports.

press to zoom
M16-Y12-02
M16-Y12-02

1 to 2 distributors Y-12 harness. 2 sizes Y connector available, cable OD up to 14AWG.

press to zoom
LSP-Y1203-288A-Y1202
LSP-Y1203-288A-Y1202

Customized Y-12 harness

press to zoom
L shape
L shape

Available with LSP-M8/M12/M15, molding type

press to zoom
M19M-M&F cable adapter
M19M-M&F cable adapter

Available at any connector models ,cable type and length.

press to zoom

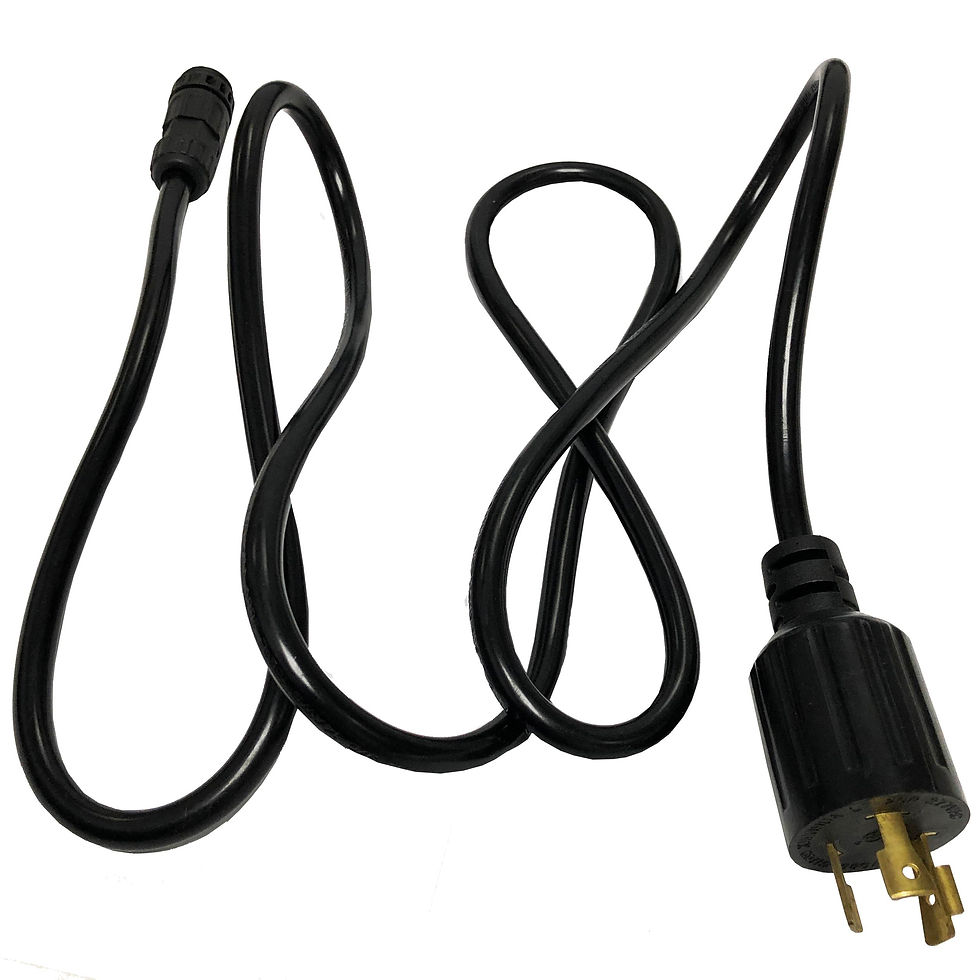

NEMA Plug with connector
NEMA Plug with connector

Available at any connector models, cable type and length.

press to zoom

ASSEMBLY / OVERMOLD

2/3/4/5/6

250V -- 110V

15A -- 5A

≤ 10Ω

500 MΩ at DC500V

3KV Under normal temperature

<=1.5mm² / 16AWG

3.5mm² ~ 8.5mm²

3000 mating cycles

-40°C ~ +105°C

-25°C ~ +85°C

IP 65 / IP 67

RoHS Environmental protection materials

PVC / PU / Rubber / Silicone

Soldering / Copper with Golden Plated

Silicone

V-0 Flame-resistant / anti-UV nylon (PA66A)
